XAccurflow^® High-Precision Diaphragm Pump

Name: XAccurflow ® High-Precision Diaphragm Pump
Brand: XAccurflow

High-precision stable output ・delivery accuracy up to ±0.5%–1% ・ smooth transfer at extremely low flow rates

咨询下载产品资料

简介特点应用场景技术参数其他联系我们

简介

Our cGMP-grade XAccurflow^{^®} High-Precision Diaphragm Pump is designed and manufactured in-house, with 316L and medical-grade polymer wetted parts delivering outstanding biocompatibility. Low-shear transfer technology minimizes physical damage to the conveyed medium, while a unique zero-dead-leg quick-disconnect design with the fluid path physically isolated from moving components eliminates residue contamination and leakage risks. Full CIP/SIP support throughout makes it ready for the most demanding biopharmaceutical applications.

特点

High-precision stable output, mass-flow-meter accuracy (±0.5–1%), built-in flow calibration against temperature, pressure and viscosity, smooth ultra-low-flow transfer
Four-diaphragm alternating action, stable low-shear low-pulsation flow at up to 6 bar, preserving biomolecule activity and integrity
Nine models, 0.9–10,000 LPH flow range, linear scale-up from bench to full-scale production
Switchable single-use and stainless-steel pump heads; single-use heads prevent cross-contamination for sensitive fluids and multi-product campaigns, stainless-steel heads for CIP/SIP service
Two pump formats: high-integration system pump for skid-mounted process systems, compact standalone pump for independent transfer units
Modbus_RTU (RS485) and 4–20 mA analog I/O across the range, seamless PLC and supervisory-system integration, dedicated maintenance kit for in-place service

应用场景

Ultrafiltration systems: stable, low-pulsation feed transfer that keeps membrane separation efficiency on target.
Chromatography systems: high-precision flow control for reproducible, high-resolution separations.
Buffer preparation systems: accurate delivery of buffers and media, with full CIP/SIP support.
Filtration systems: low-shear transfer protects biomolecules for clarification and sterile filtration.
Fermentation systems: harvest broth transfer.
Reactor systems: precise charge feeding for consistent reaction performance.
Homogenization systems: stable transfer of high-viscosity fluids to suit high-pressure homogenization.

技术参数

Item	30 serial	60 serial	100 serial	300 serial	600 serial	1000serial	2000serial	5000 serial	10000 serial
Max. Flow Rate	30.0 LPH (0.500 LPM)	60.0 LPH (1.000 LPM)	100.0 LPH (1.667 LPM)	270.0 LPH (4.5 LPM)	600.0 LPH (10.000 LPM)	1000.0 LPH (16.667 LPM)	1800.0 LPH (30.000 LPM)	5000.0 LPH (83.333 LPM)	10000.0 LPH (166.667 LPM)
Min. Flow Rate	0.9 LPH (0.015 LPM)	0.9 LPH (0.015 LPM)	0.3 LPH (0.005 LPM)	0.6 LPH (0.010L PM)	3.6 LPH (0.06 LPM)	6.9 LPH (0.115 LPM)	6.9 LPH (0.115 LPM)	18.6 LPH (0.310 LPM)	26.1 LPH (0.435 LPM)
Operating Pressure	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar	Temperature of Fluid ＜40℃：6bar；＞40℃：4bar
Max. Operating Temperature	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃	Fluid 80℃； CIP 90℃； SIP/Autoclave 130℃
Speed Range	10-1200 rpm	10-1200 rpm	1-2100 rpm	1-3000 rpm	1-1750 rpm	2-1650 rpm	2-2500 rpm	1-1000 rpm	1-1300 rpm
Approximated flow volume per rotation at free output	0.51 ml/r	0.51 ml/r	0.91 ml/r	1.62 ml/r	6.28 ml/r	11.18 ml/r	11.25 ml/r	98.65 ml/r	146.30 ml/r
Product wetted surface (approx.)	69 cm²	69 cm²	133 cm²	133 cm²	385 cm²	385 cm²	404 cm²	1690 cm²	1750 cm²
Filling volume without connectors	6.6 ml	6.6 ml	18 ml	18 ml	94 ml	94 ml	104 ml	910 ml	970 ml
Residual volume （Horizontal direction of the flow path）	5 ml	5 ml	5 ml	5 ml	10 ml	10 ml	10 ml	70 ml	70 ml
Connection Specification	1/4 " TC	1/4 " TC	3/8 " TC	3/8 " TC	3/4 " TC	3/4 " TC	1 " TC	1 1/2" TC	2" TC
IC · Weight	11.5 kg	11.5 kg	12 kg	12 kg	27 kg	27 kg	27 kg	/	/
IC · Dimension with Motor and Housing	410268215 mm	410268215mm	420268214 mm	420268214mm	509215294 mm	509215294 mm	509215294mm	/	/
SC · Weight	6 kg	6 kg	6 kg	6 kg	21 kg	21 kg	21 kg	91 kg	91 kg
SC · Dimension with Motor and Housing	256128142mm	256128142mm	264128142 mm	264128142 mm	375180202 mm	375180202 mm	375180202 mm	628250384mm	628250384 mm
Power	100 W	100 W	100 W	100 W	750 W	750 W	750 W	4.5 KW	4.5 KW
Voltage	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC230V 50Hz /AC 110V 60 Hz	AC400V 50Hz/ AC 200V 60 Hz	AC400V 50Hz/ AC 200V 60 Hz
Communication	Modbus RTU/ RS485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA	Modbus RTU/ RS 485; 4-20 mA
Maximum Dry Suction Lift (Tested with purified water at 25°C）	10% speed：0.5m 30% speed：1m 50% speed：1.5m 70% speed：2m 100% speed：2m	10% speed：1m 30% speed：2m 50% speed：2.5m70% speed：2.5m 100%speed：2.5m	10% speed：1m 30% speed：2m 50% speed：2.5m70% speed：2.5m 100%speed：2.5m	10% speed：1m 30% speed：2m 50% speed：2.5m 70% speed：2.5m 100%speed：2.5m	10% speed：1.5m 30% speed：2m 50% speed：2.5m 70% speed：2.5m 100%speed：2.5m	10% speed：2m 30% speed：3.5m 50% speed：4.5m70% speed：4.5m 100%speed：4.5m	10% speed：2m 30% speed：3m 50% speed：3m 70% speed：3.5m 100%speed：3.5m	10% speed：3m 30% speed：3m 50% speed：3m 70% speed：3m 100%speed：3m	10% speed：3m 30% speed：4m 50% speed：4.5m 70% speed：4.5m 100% speed：4.5m

Product Wetted Materials (Standard)
Component	Material	Compliant Standard
Reusable pump chamber / valve plate / connector	1.4404/1.4435 stainless steel	EN 10204 type 3.1 inspection certificate available
Single-use pump chamber / valve plate / connector	PP/PTPE/PVDF	USP Class VI
Diaphragm	TPV	USP Class VI
Check valve / O-ring	Silicone	USP Class VI

其他

Performance Charts

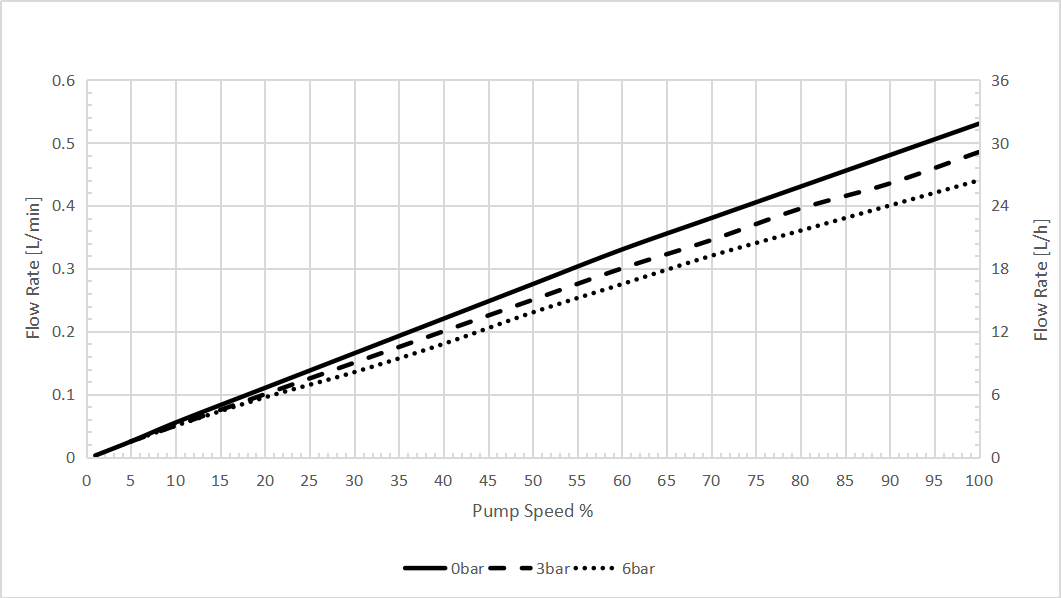

1. 30 serial

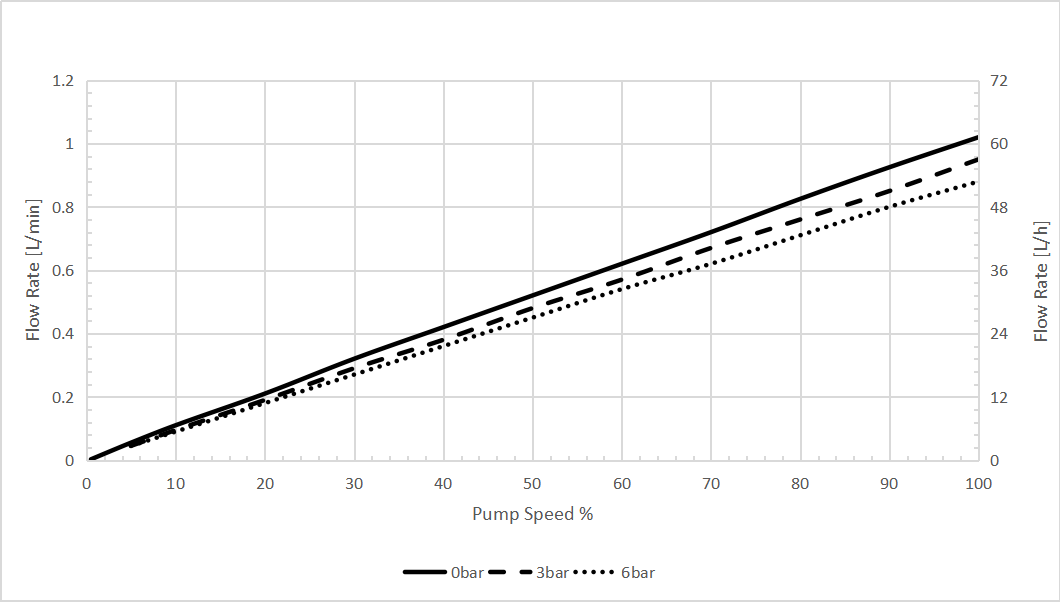

2. 60 serial

3. 100 serial

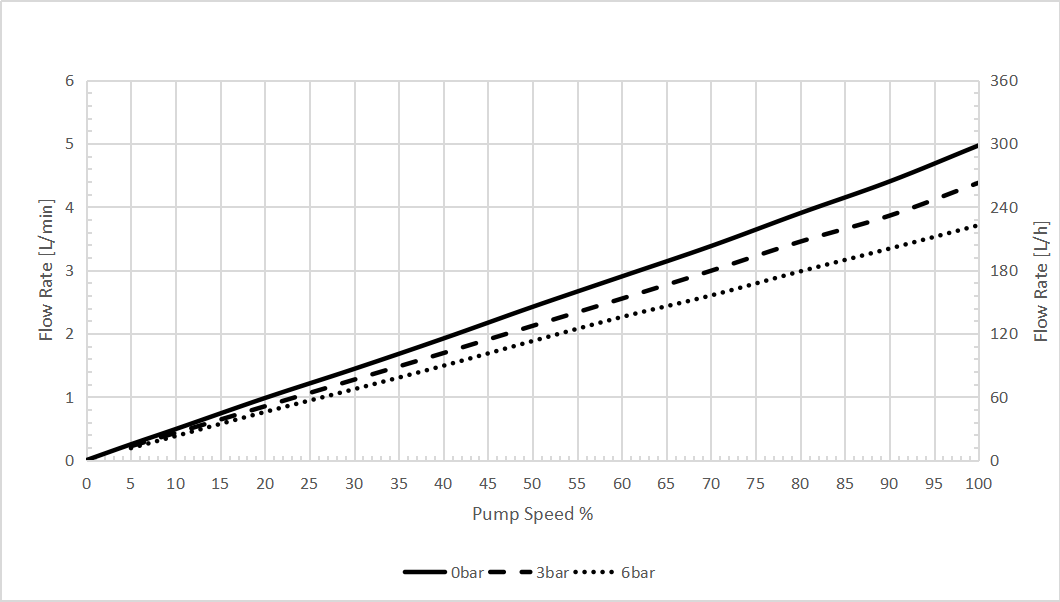

4. 300 serial

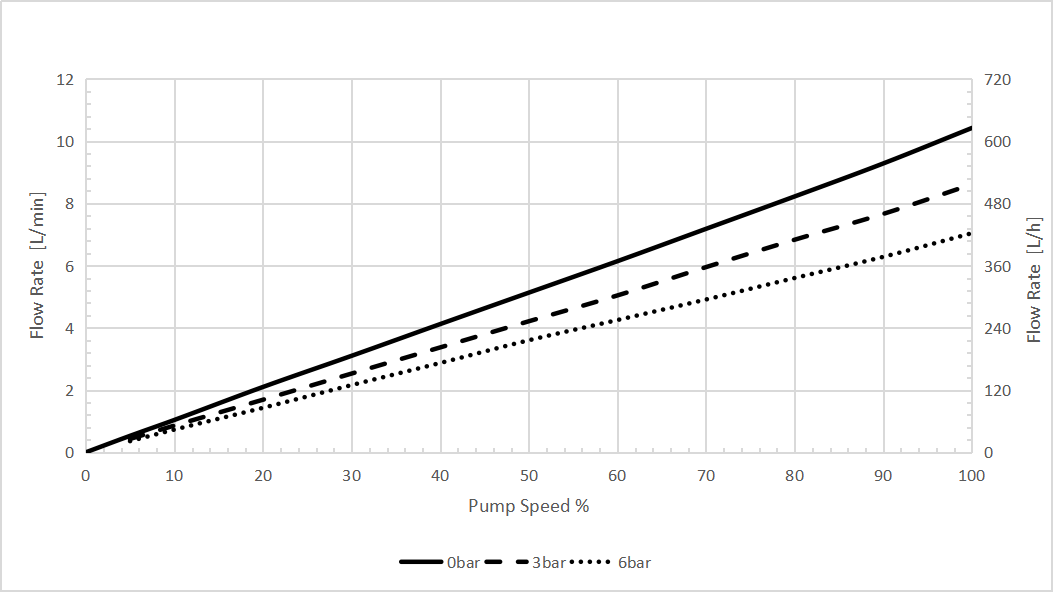

5. 600 serial

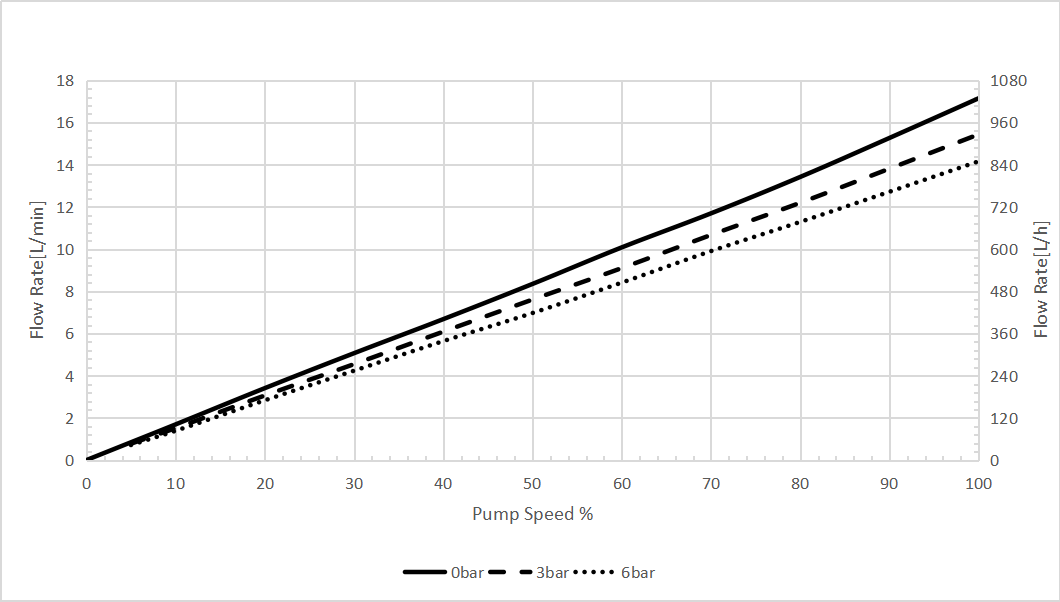

6. 1000 serial

.

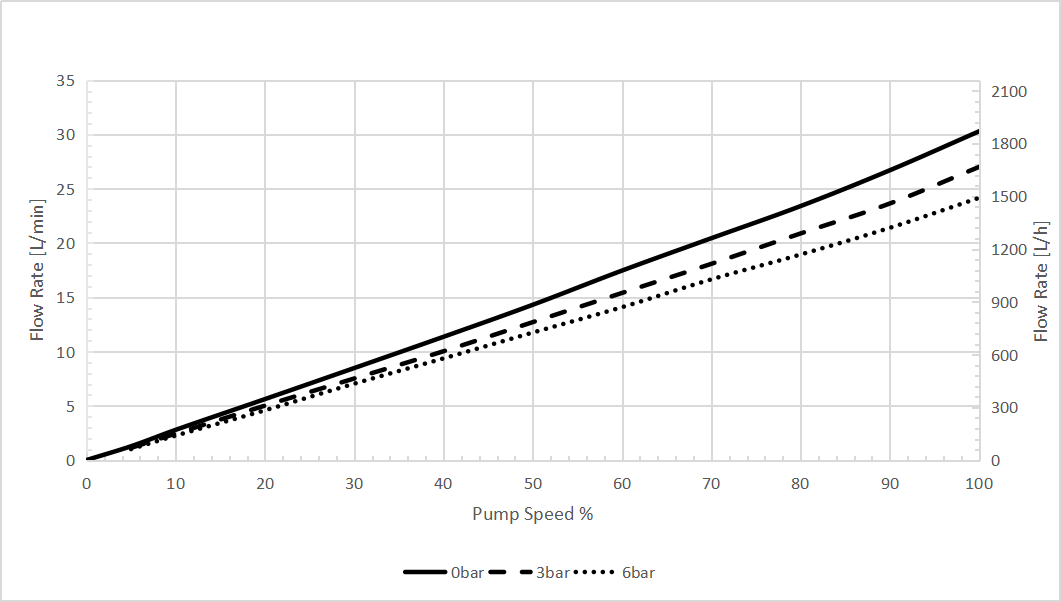

7. 2000 serial

8. 5000 serial

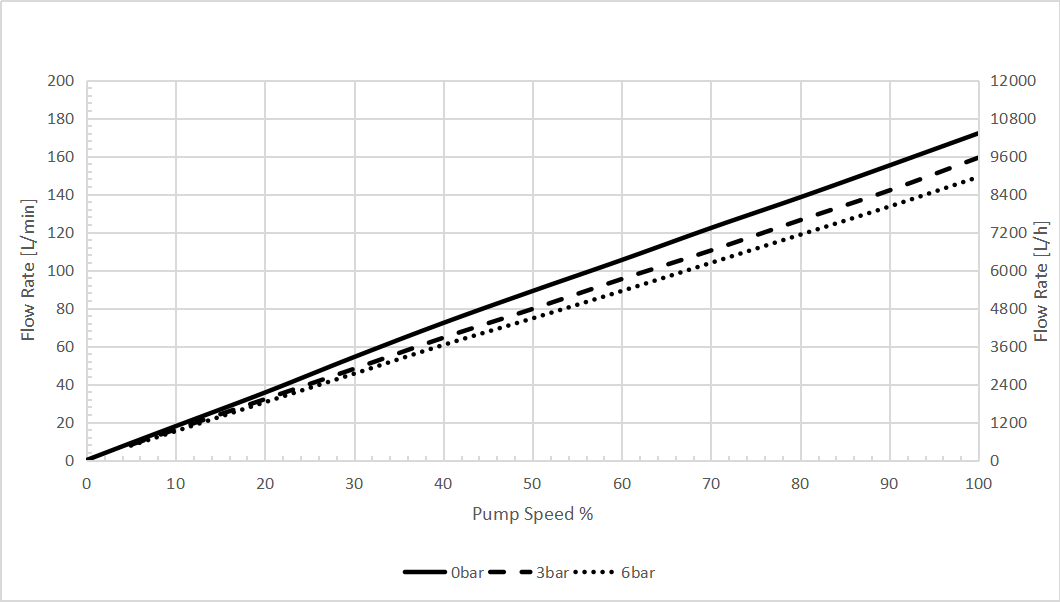

9. 10000 serial
